Baffle acústico suspenso — baffle form arc.
| ▸ PEÇA 1 | ▸ PEÇA 2 | Compartilhado | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Thickness(mm) | "A"(mm) | "B"(mm) | "C"(mm) | Peças | PET | "A"(mm) | "B"(mm) | "C"(mm) | Peças | Pç/cx | Cobertura | PET |
| BF-ARE-09-0001 | 9 | 232 | 1200 | 112 | 6 | 37 | 232 | 1200 | 352 | 6 | 12 | 3,20 m² | 37 |
| BF-ARE-09-0002 | 9 | 348 | 1200 | 228 | 4 | 55 | 348 | 1200 | 468 | 4 | 8 | 3,02 m² | 55 |
| BF-ARE-09-0003 | 9 | 464 | 1200 | 343 | 3 | 72 | 464 | 1200 | 585 | 3 | 6 | 2,86 m² | 72 |
| BF-ARE-09-0004 | 9 | 560 | 1200 | 437 | 3 | 87 | 560 | 1200 | 680 | 2 | 5 | 2,75 m² | 87 |
| BF-ARE-09-0005 | 9 | 240 | 2800 | 120 | 3 | 76 | 240 | 2800 | 364 | 2 | 5 | 2,83 m² | 76 |
| BF-ARE-09-0006 | 9 | 300 | 2800 | 197 | 2 | 94 | 300 | 2800 | 400 | 2 | 4 | 2,63 m² | 94 |
| BF-ARE-09-0007 | 9 | 400 | 2800 | 296 | 2 | 126 | 400 | 2800 | 501 | 1 | 3 | 2,32 m² | 126 |
| BF-ARE-09-0008 | 9 | 600 | 2800 | 470 | 1 | 188 | 600 | 2800 | 730 | 1 | 2 | 1,74 m² | 188 |
| BF-ARE-10-0001 | N25E10 | 232 | 1400 | 112 | 6 | 17 | 232 | 1400 | 352 | 6 | 12 | 3,99 m² | 17 |
| BF-ARE-10-0002 | N25E10 | 348 | 1400 | 228 | 4 | 26 | 348 | 1400 | 468 | 4 | 8 | 3,68 m² | 26 |
| BF-ARE-10-0003 | N25E10 | 464 | 1400 | 343 | 3 | 34 | 464 | 1400 | 585 | 3 | 6 | 3,46 m² | 34 |
| BF-ARE-10-0004 | N25E10 | 560 | 1400 | 437 | 3 | 41 | 560 | 1400 | 680 | 2 | 5 | 3,30 m² | 41 |
| BF-ARE-10-0005 | N25E10 | 230 | 2800 | 115 | 3 | 34 | 230 | 2800 | 350 | 3 | 6 | 3,64 m² | 34 |
| BF-ARE-10-0006 | N25E10 | 280 | 2800 | 184 | 3 | 41 | 280 | 2800 | 375 | 2 | 5 | 3,47 m² | 41 |
| BF-ARE-10-0007 | N25E10 | 350 | 2800 | 260 | 2 | 51 | 350 | 2800 | 440 | 2 | 4 | 3,22 m² | 51 |
| BF-ARE-10-0008 | N25E10 | 465 | 2800 | 363 | 2 | 68 | 465 | 2800 | 570 | 1 | 3 | 2,80 m² | 68 |
| BF-ARE-20-0001 | N50E20 | 232 | 1400 | 112 | 6 | 17 | 232 | 1400 | 352 | 6 | 12 | 4,41 m² | 17 |
| BF-ARE-20-0002 | N50E20 | 348 | 1400 | 228 | 4 | 26 | 348 | 1400 | 468 | 4 | 8 | 3,98 m² | 26 |
| BF-ARE-20-0003 | N50E20 | 464 | 1400 | 343 | 3 | 34 | 464 | 1400 | 585 | 3 | 6 | 3,67 m² | 34 |
| BF-ARE-20-0004 | N50E20 | 560 | 1400 | 437 | 3 | 41 | 560 | 1400 | 680 | 2 | 5 | 3,49 m² | 41 |
| BF-ARE-20-0005 | N50E20 | 230 | 2800 | 115 | 3 | 34 | 230 | 2800 | 350 | 3 | 6 | 4,06 m² | 34 |
| BF-ARE-20-0006 | N50E20 | 280 | 2800 | 184 | 3 | 41 | 280 | 2800 | 375 | 2 | 5 | 3,84 m² | 41 |
| BF-ARE-20-0007 | N50E20 | 350 | 2800 | 260 | 2 | 51 | 350 | 2800 | 440 | 2 | 4 | 3,50 m² | 51 |
| BF-ARE-20-0008 | N50E20 | 465 | 2800 | 363 | 2 | 68 | 465 | 2800 | 570 | 1 | 3 | 3,02 m² | 68 |
cor para visualizar
*To ensure acoustic performance, the spacing between the baffles must be equal to it´s height “A.”
Note: Changing the distance between the baffles changes the acoustic performance and the coverage area.
Heights designed to make better use of the board, with lower cost and minimizing waste.

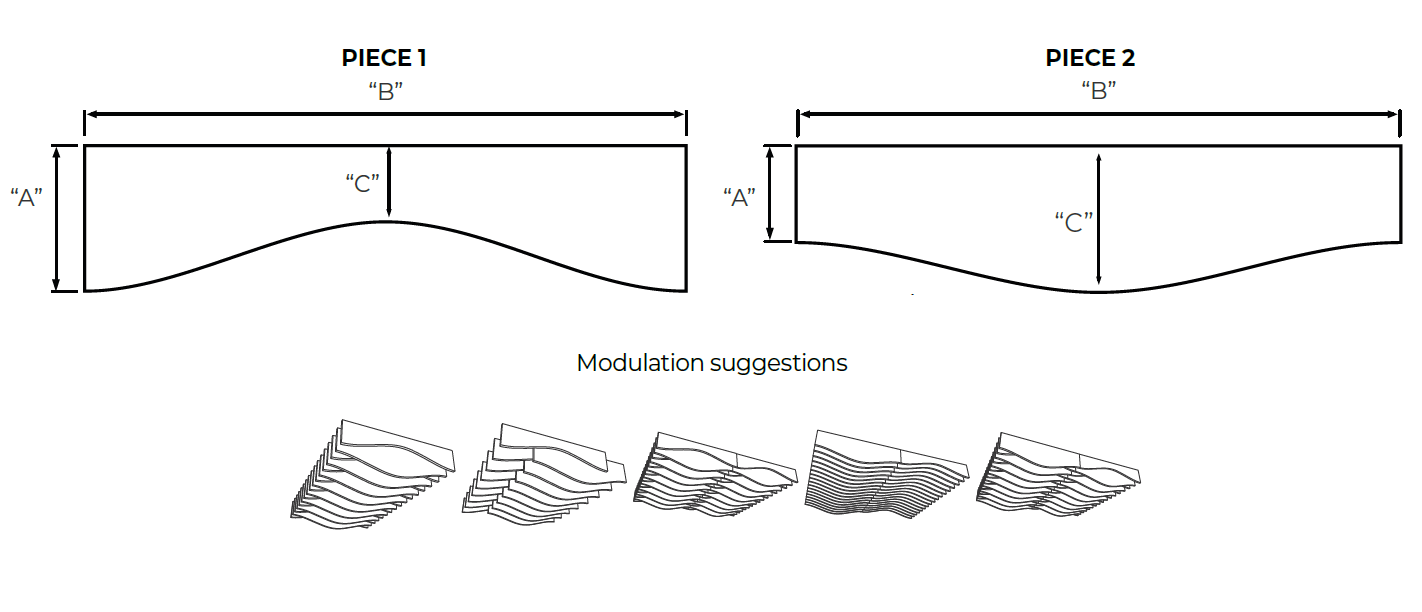

This baffle has a system of complementary parts (1 and 2) for assembling the module.
Solid Colors: Chose from avaiable colors or select your pantone color.
See QR CODE for avaiable colors.
Engraving: See avaiable engraving possibilities in QR CODE.
Upcycling: All our products are 100% recyclable.
