Baffle acústico suspenso — baffle classic rectangle.

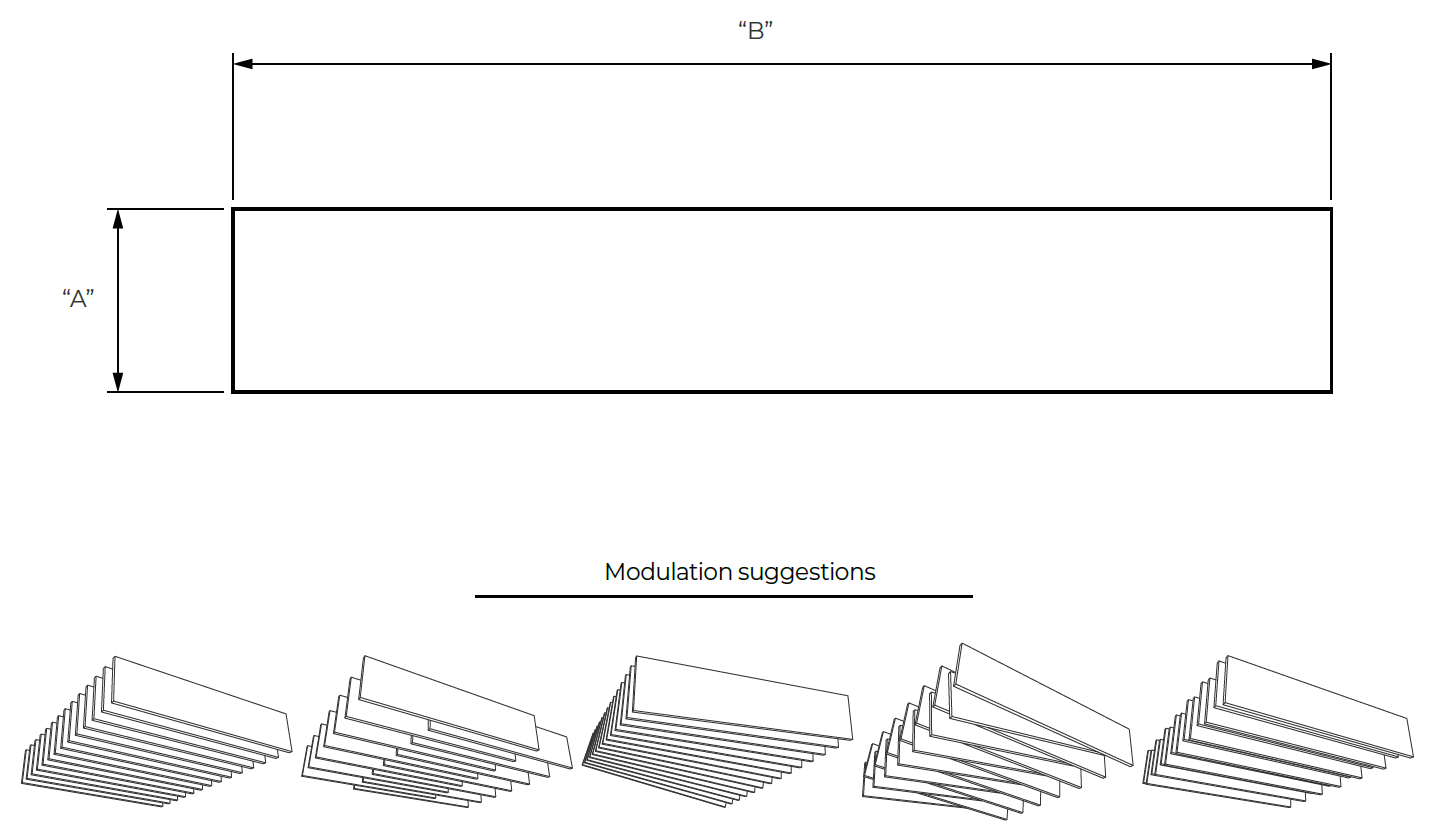

| Code | Thickness(mm) | "A"(mm) | "B"(mm) | Peças/cx | Cobertura | PET Bottles |
|---|---|---|---|---|---|---|
| BC-STR-50-0001 | 50 | 200 | 1200 | 14 | 3,96 m² | 27 |
| BC-STR-50-0002 | 50 | 310 | 1200 | 9 | 3,52 m² | 42 |
| BC-STR-50-0003 | 50 | 400 | 1200 | 7 | 3,30 m² | 54 |
| BC-STR-50-0004 | 50 | 560 | 1200 | 5 | 2,99 m² | 75 |
cor para visualizar
*To ensure acoustic performance, the spacing between the baffles must be equal to it´s height “A.”
Note: Changing the distance between the baffles changes the acoustic performance and the coverage area.
Solid Colors: Chose from avaiable colors or select your pantone color.
See QR CODE for avaiable colors.
Upcycling: All our products are 100% recyclable.
