Baffle acústico suspenso — baffle form arc.

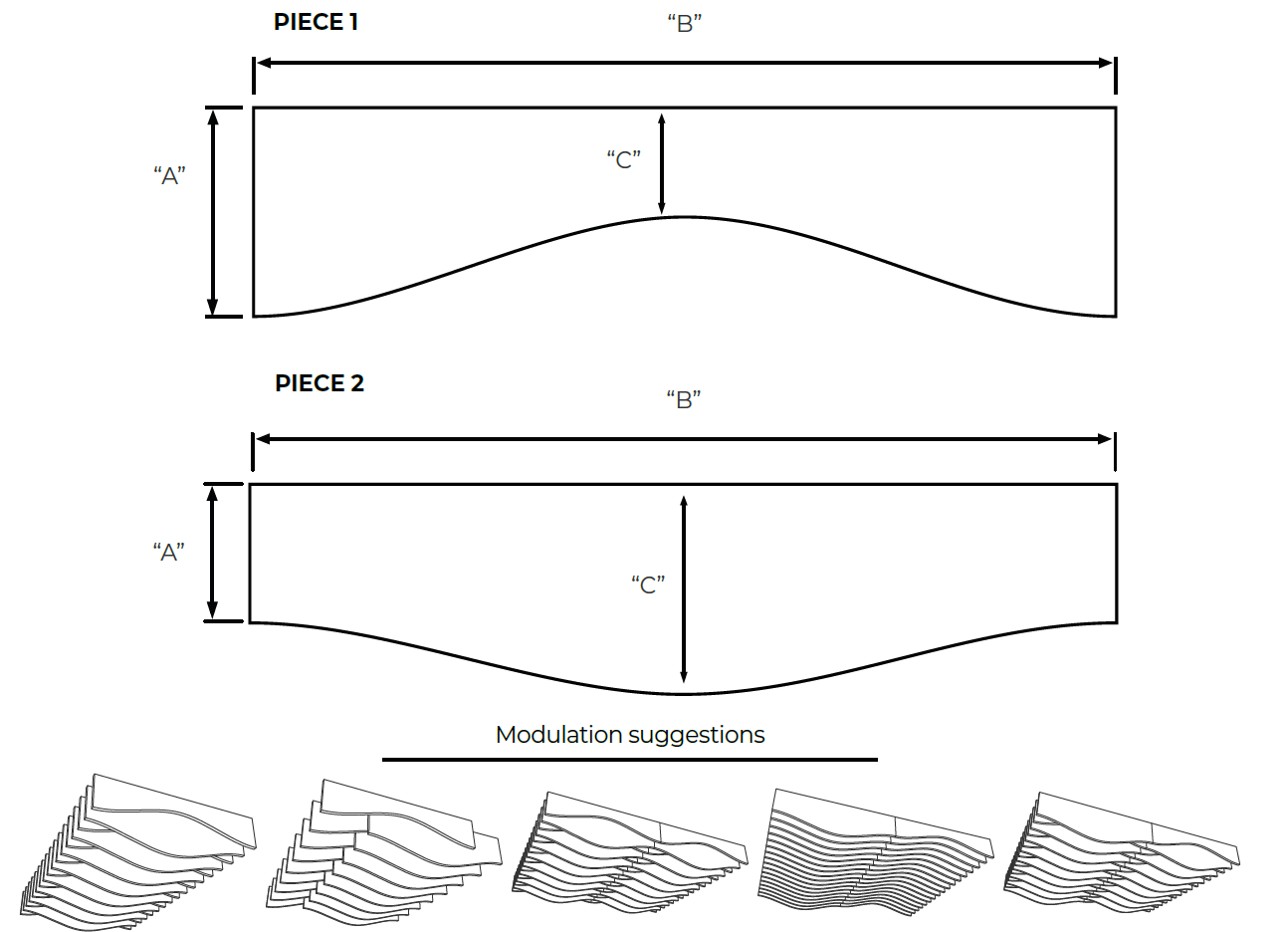

| ▸ PEÇA 1 | ▸ PEÇA 2 | Compartilhado | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Thickness(mm) | "A"(mm) | "B"(mm) | "C"(mm) | Peças | PET | "A"(mm) | "B"(mm) | "C"(mm) | Peças | Pç/cx | Cobertura | PET |
| BF-APC-09-0001 | 9 | 232 | 1200 | 112 | 6 | 37 | 232 | 1200 | 352 | 6 | 12 | 3,20 m² | 28 |
| BF-APC-09-0002 | 9 | 348 | 1200 | 228 | 4 | 55 | 348 | 1200 | 468 | 4 | 8 | 3,02 m² | 37 |
| BF-APC-09-0003 | 9 | 464 | 1200 | 343 | 3 | 73 | 464 | 1200 | 585 | 3 | 6 | 2,86 m² | 46 |
| BF-APC-09-0004 | 9 | 560 | 1200 | 437 | 3 | 88 | 560 | 1200 | 680 | 2 | 5 | 2,75 m² | 54 |
| BF-APC-09-0005 | 9 | 240 | 2800 | 120 | 3 | 72 | 240 | 2800 | 364 | 2 | 5 | 2,83 m² | 55 |
| BF-APC-09-0006 | 9 | 300 | 2800 | 197 | 2 | 88 | 300 | 2800 | 400 | 2 | 4 | 2,63 m² | 59 |
| BF-APC-09-0007 | 9 | 400 | 2800 | 296 | 2 | 110 | 400 | 2800 | 501 | 1 | 3 | 2,32 m² | 69 |
| BF-APC-09-0008 | 9 | 600 | 2800 | 470 | 1 | 146 | 600 | 2800 | 730 | 1 | 2 | 1,74 m² | 90 |
| BF-APC-25-0001 | 25 | 232 | 1400 | 112 | 6 | 17 | 232 | 1400 | 352 | 6 | 12 | 3,99 m² | 13 |
| BF-APC-25-0002 | 25 | 348 | 1400 | 228 | 4 | 25 | 348 | 1400 | 468 | 4 | 8 | 3,68 m² | 17 |
| BF-APC-25-0003 | 25 | 464 | 1400 | 343 | 3 | 34 | 464 | 1400 | 585 | 3 | 6 | 3,46 m² | 22 |
| BF-APC-25-0004 | 25 | 560 | 1400 | 437 | 3 | 41 | 560 | 1400 | 680 | 2 | 5 | 3,30 m² | 25 |
| BF-APC-25-0005 | 25 | 230 | 2800 | 115 | 3 | 34 | 230 | 2800 | 350 | 3 | 6 | 3,64 m² | 26 |
| BF-APC-25-0006 | 25 | 280 | 2800 | 184 | 3 | 41 | 280 | 2800 | 375 | 2 | 5 | 3,47 m² | 28 |
| BF-APC-25-0007 | 25 | 350 | 2800 | 260 | 2 | 51 | 350 | 2800 | 440 | 2 | 4 | 3,22 m² | 32 |
| BF-APC-25-0008 | 25 | 465 | 2800 | 363 | 2 | 68 | 465 | 2800 | 570 | 1 | 3 | 2,80 m² | 42 |
| BF-APC-50-0001 | 50 | 232 | 1400 | 112 | 6 | 32 | 232 | 1400 | 352 | 6 | 12 | 4,41 m² | 24 |
| BF-APC-50-0002 | 50 | 348 | 1400 | 228 | 4 | 47 | 348 | 1400 | 468 | 4 | 8 | 3,98 m² | 32 |
| BF-APC-50-0003 | 50 | 464 | 1400 | 343 | 3 | 63 | 464 | 1400 | 585 | 3 | 6 | 3,67 m² | 40 |
| BF-APC-50-0004 | 50 | 560 | 1400 | 437 | 3 | 76 | 560 | 1400 | 680 | 2 | 5 | 3,49 m² | 46 |
| BF-APC-50-0005 | 50 | 230 | 2800 | 115 | 3 | 76 | 230 | 2800 | 350 | 3 | 6 | 4,06 m² | 57 |
| BF-APC-50-0006 | 50 | 280 | 2800 | 184 | 3 | 94 | 280 | 2800 | 375 | 2 | 5 | 3,84 m² | 63 |
| BF-APC-50-0007 | 50 | 350 | 2800 | 260 | 2 | 126 | 350 | 2800 | 440 | 2 | 4 | 3,50 m² | 79 |
| BF-APC-50-0008 | 50 | 465 | 2800 | 363 | 2 | 188 | 465 | 2800 | 570 | 1 | 3 | 3,02 m² | 115 |

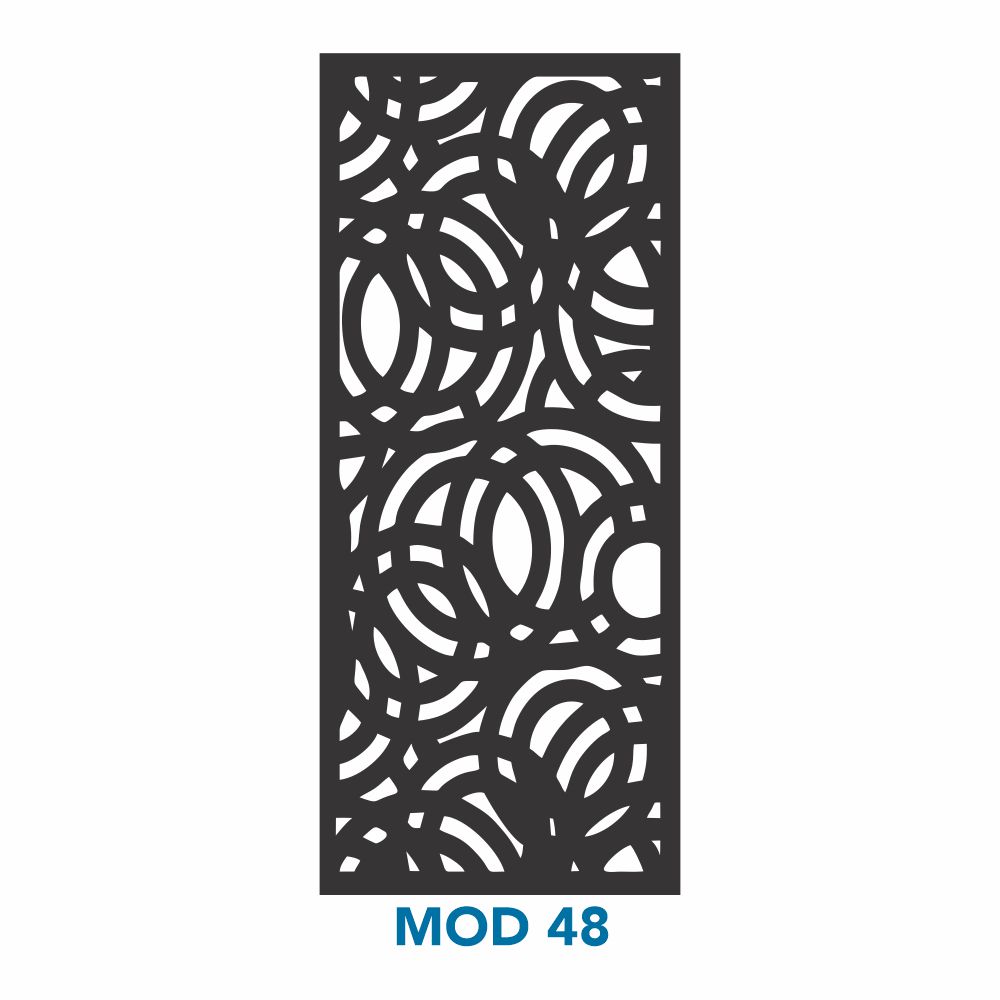

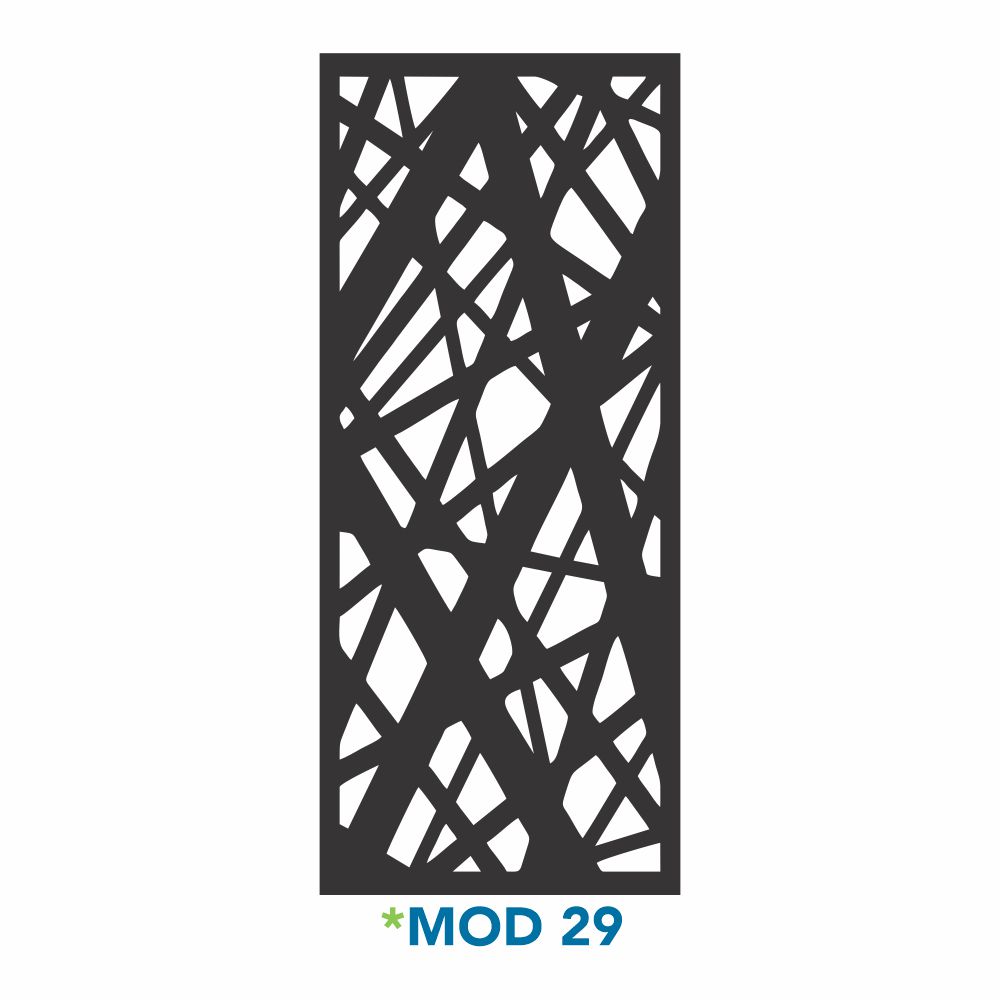

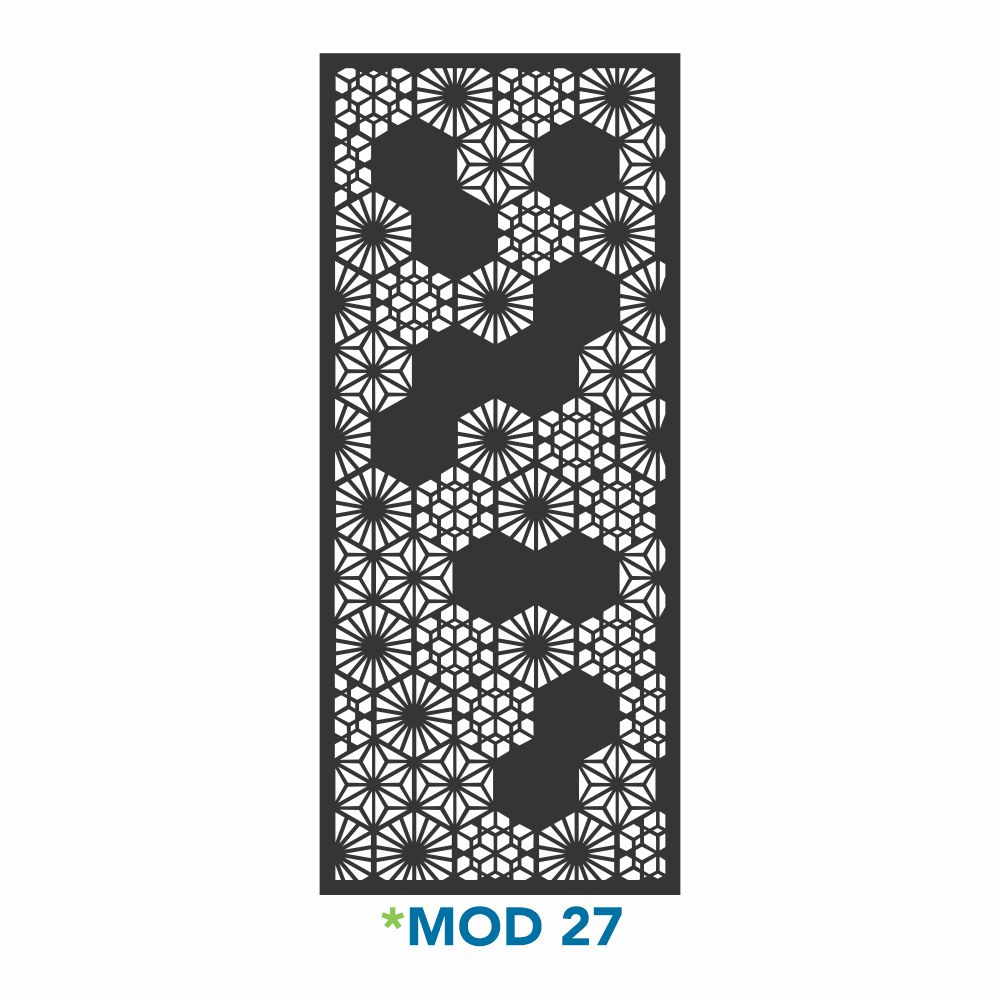

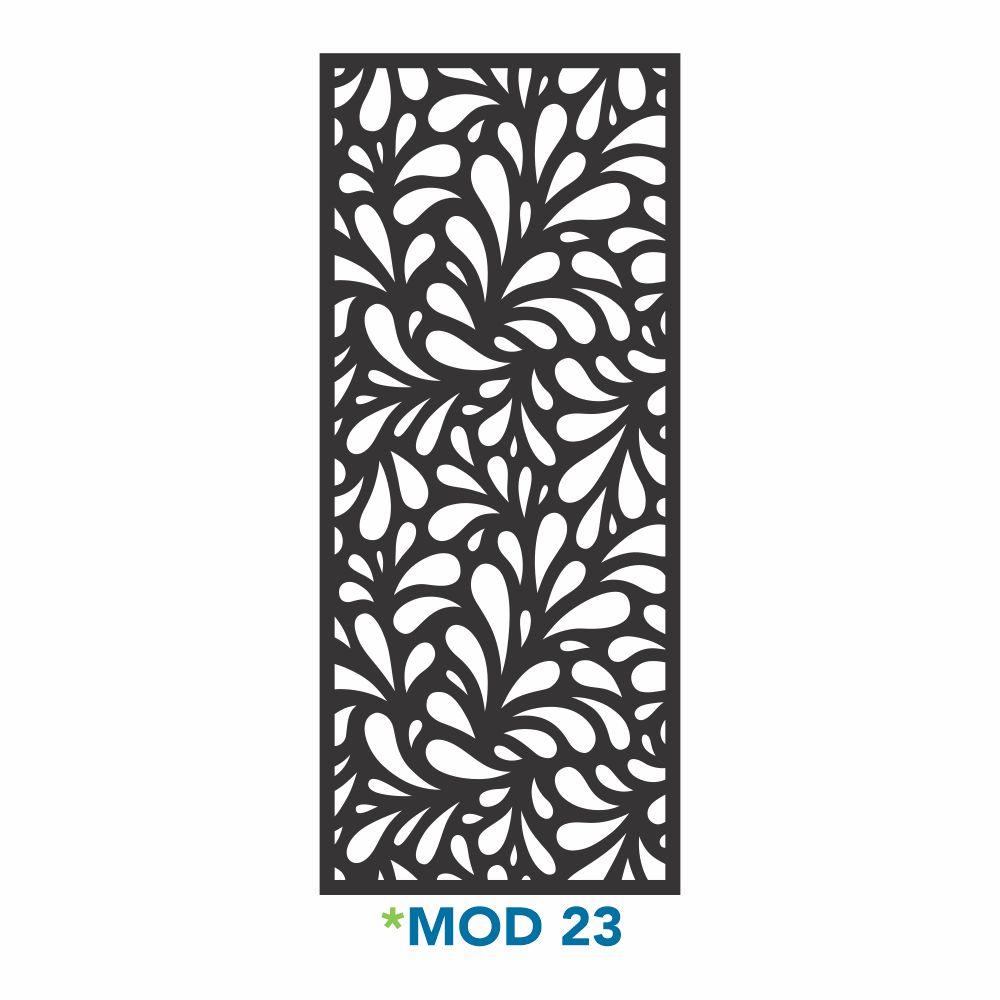

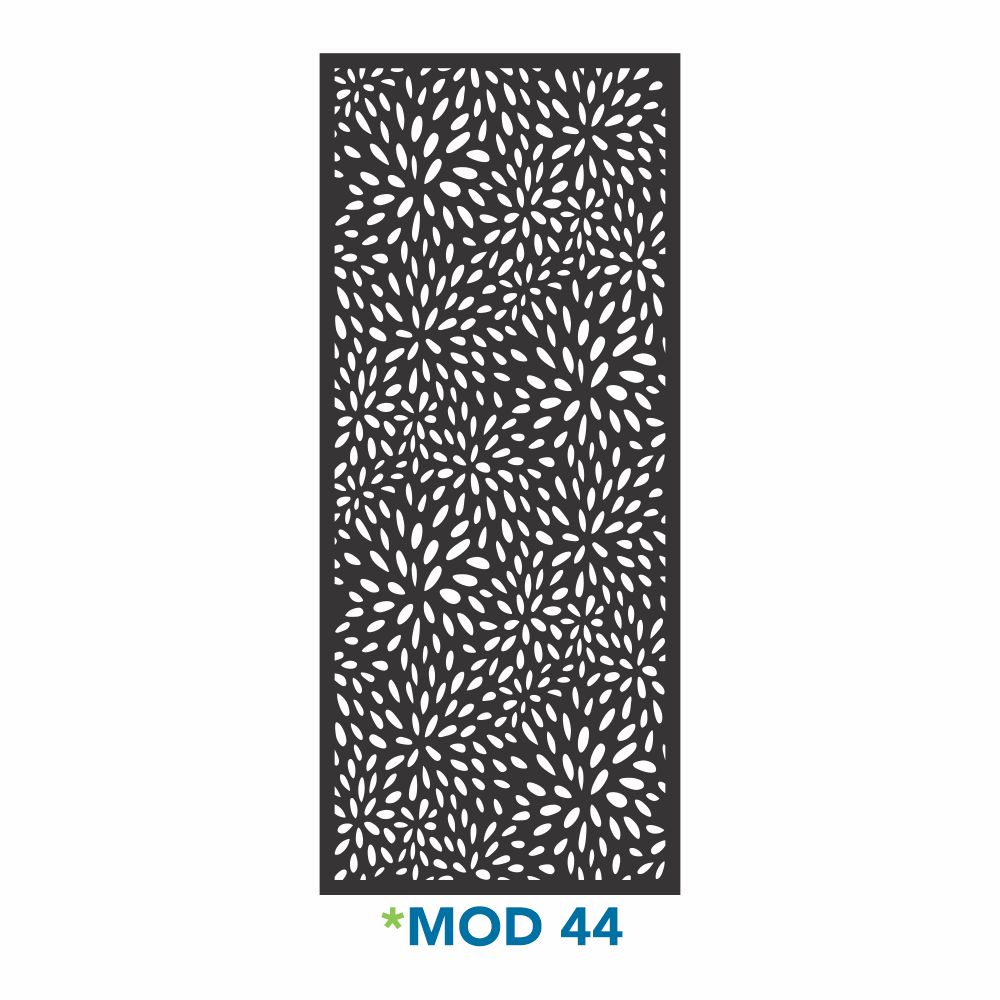

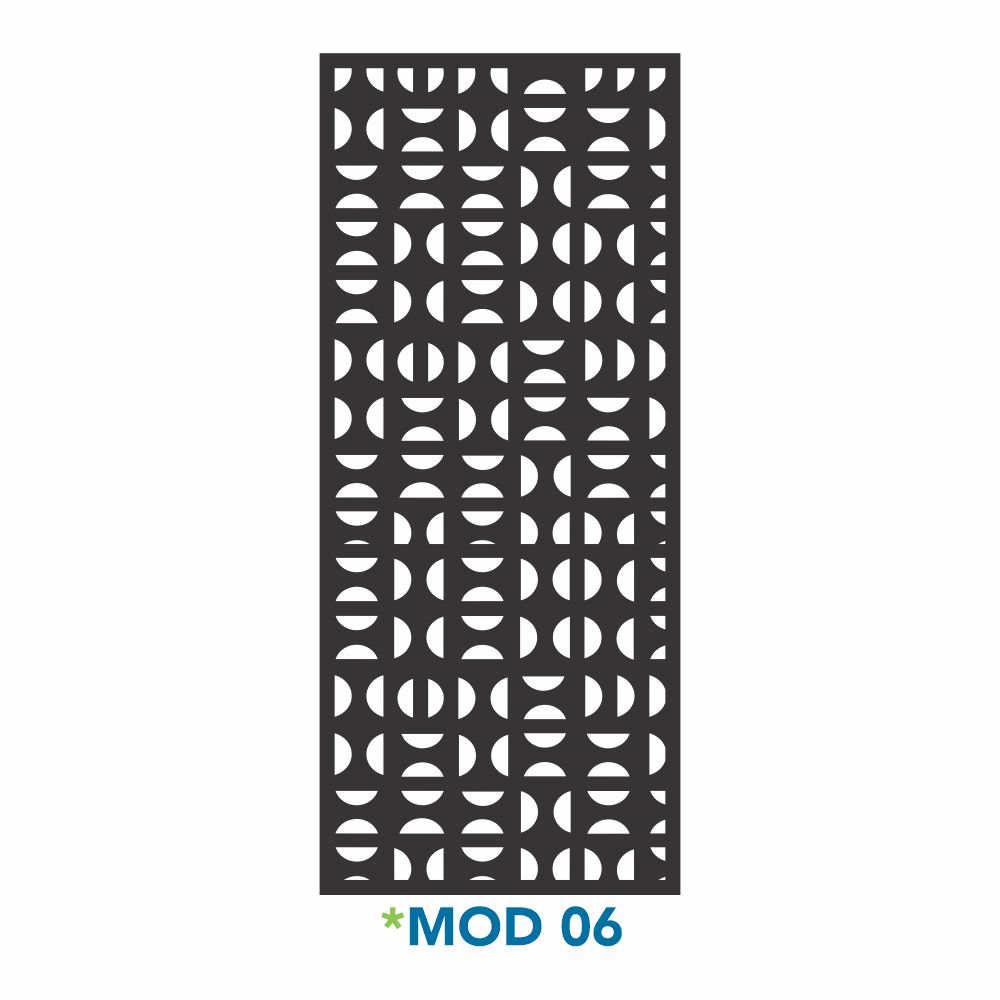

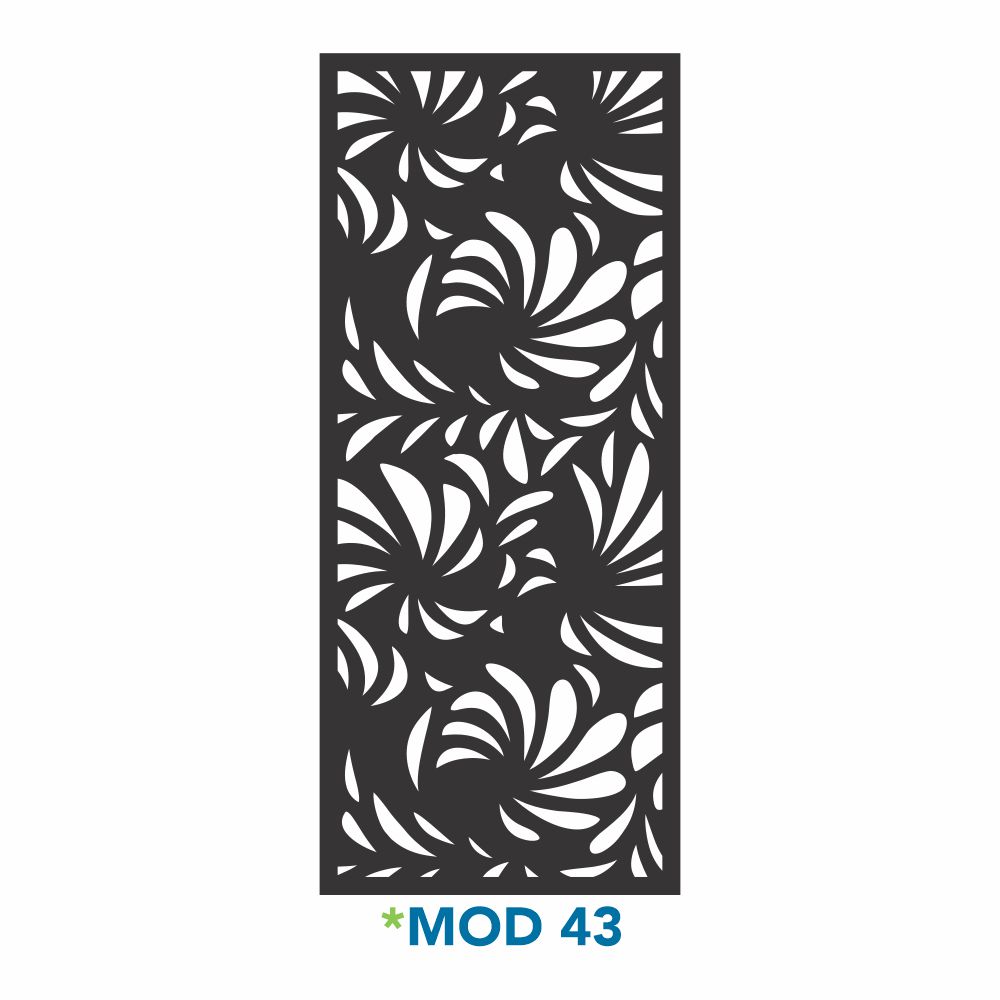

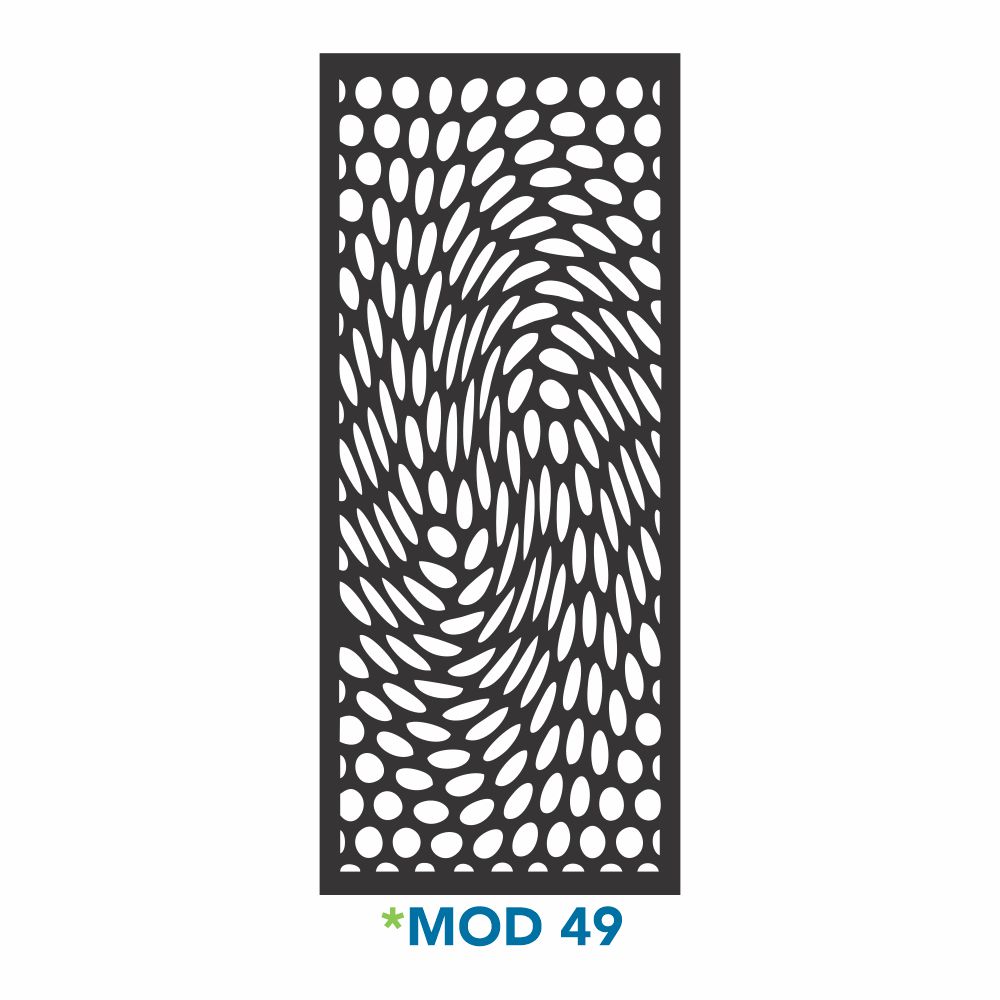

padrão de Cut
padrão de Printed
*To ensure acoustic performance, the spacing between the baffles must be equal to it´s height “A.”
Note: Changing the distance between the baffles changes the acoustic performance and the coverage area.
Heights designed to make better use of the board, with lower cost and minimizing waste.
This baffle has a system of complementary parts (1 and 2) for assembling the module.
Prints: Chose your own color, print/picture in high resolution, minimum 300 DPI+ required for
better quality. See QR CODE for avaiable prints.

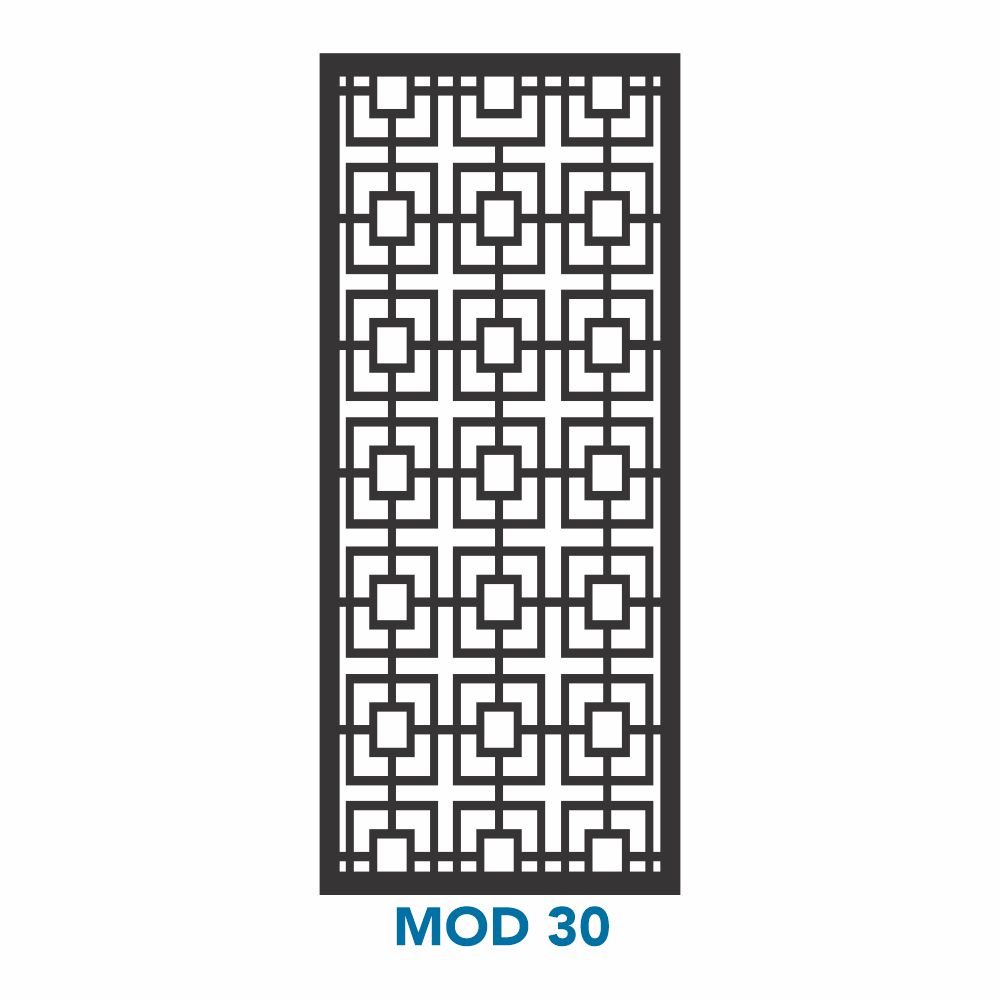

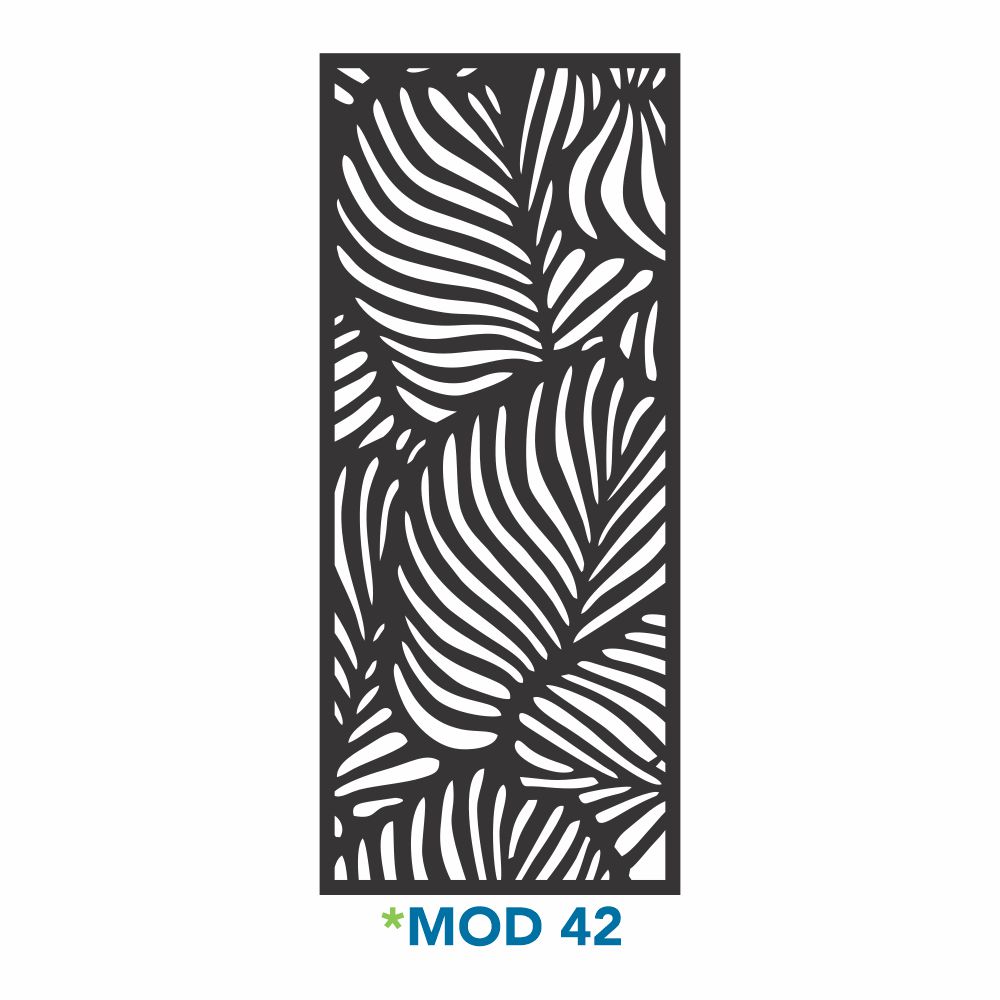

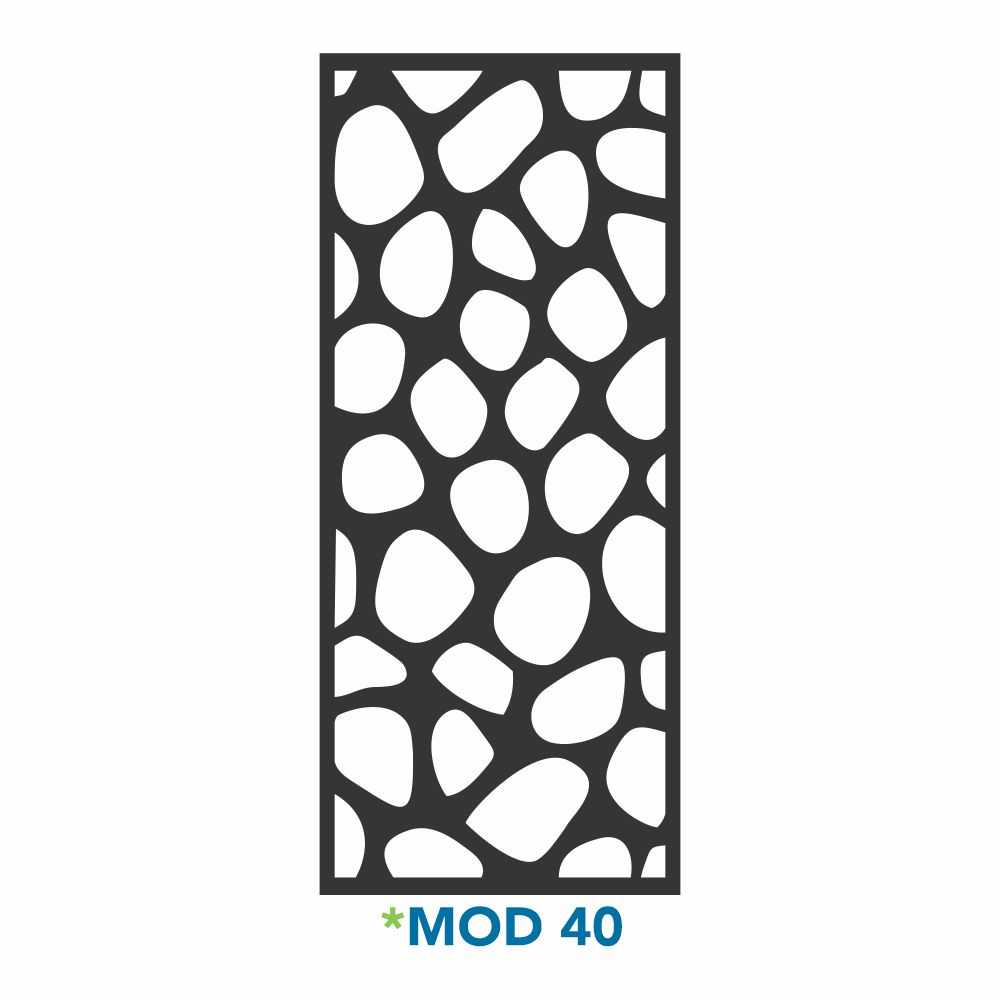

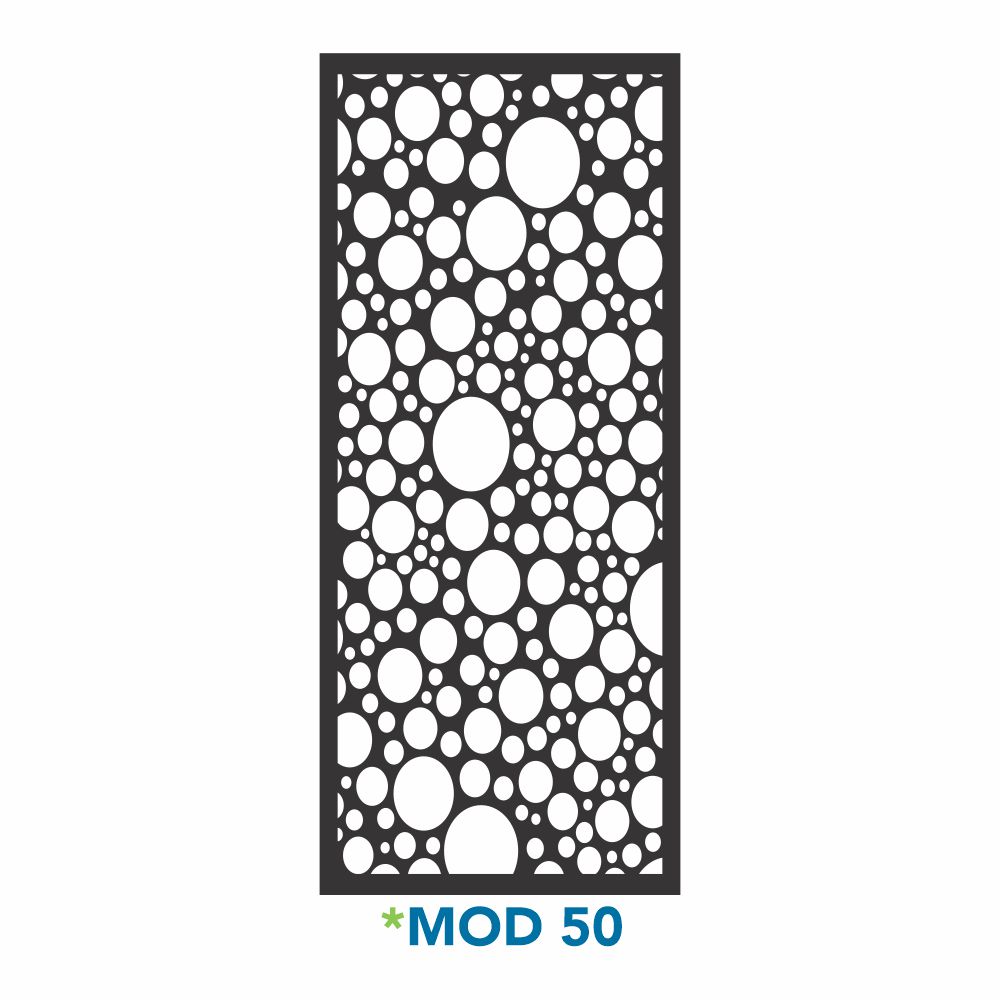

Cut Pattern: Chose your own cutting pattern or see QR. CODE for avaiable cut patterns.
Upcycling: All our products are 100% recyclable.
