Baffle acústico suspenso — baffle form arc.

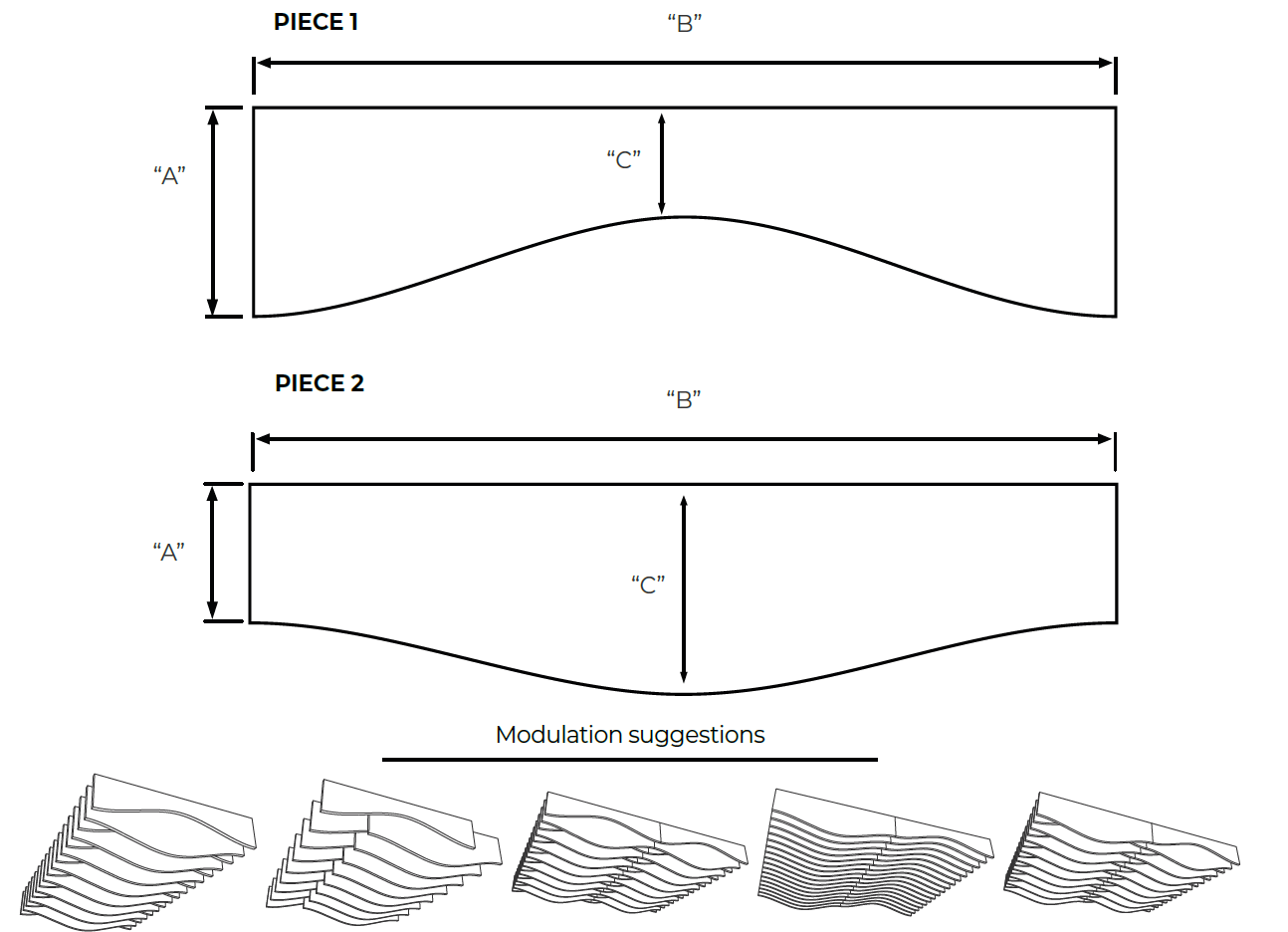

| ▸ PEÇA 1 | ▸ PEÇA 2 | Compartilhado | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Thickness(mm) | "A"(mm) | "B"(mm) | "C"(mm) | Peças | PET | "A"(mm) | "B"(mm) | "C"(mm) | Peças | Pç/cx | Cobertura | PET |
| BF-ARP-09-0001 | 9 | 232 | 1200 | 112 | 6 | 37 | 232 | 1200 | 352 | 6 | 12 | 3,20 m² | 37 |
| BF-ARP-09-0002 | 9 | 348 | 1200 | 228 | 4 | 55 | 348 | 1200 | 468 | 4 | 8 | 30,2 m² | 55 |
| BF-ARP-09-0003 | 9 | 464 | 1200 | 343 | 3 | 72 | 464 | 1200 | 585 | 3 | 6 | 2,86 m² | 72 |
| BF-ARP-09-0004 | 9 | 560 | 1200 | 437 | 3 | 87 | 560 | 1200 | 680 | 2 | 5 | 2,75 m² | 87 |
| BF-ARP-09-0005 | 9 | 240 | 2800 | 120 | 3 | 76 | 240 | 2800 | 364 | 2 | 5 | 2,83 m² | 76 |
| BF-ARP-09-0006 | 9 | 300 | 2800 | 197 | 2 | 94 | 300 | 2800 | 400 | 2 | 4 | 2,63 m² | 94 |
| BF-ARP-09-0007 | 9 | 400 | 2800 | 296 | 2 | 126 | 400 | 2800 | 501 | 1 | 3 | 2,32 m² | 126 |
| BF-ARP-09-0008 | 9 | 600 | 2800 | 470 | 1 | 188 | 600 | 2800 | 730 | 1 | 2 | 1,74 m² | 188 |
| BF-ARP-25-0001 | 25 | 232 | 1400 | 112 | 6 | 17 | 232 | 1400 | 352 | 6 | 12 | 3,99 m² | 17 |
| BF-ARP-25-0002 | 25 | 348 | 1400 | 228 | 4 | 26 | 348 | 1400 | 468 | 4 | 8 | 3,68 m² | 26 |
| BF-ARP-25-0003 | 25 | 464 | 1400 | 343 | 3 | 34 | 464 | 1400 | 585 | 3 | 6 | 3,46 m² | 34 |
| BF-ARP-25-0004 | 25 | 560 | 1400 | 437 | 3 | 41 | 560 | 1400 | 680 | 1 | 5 | 3,30 m² | 41 |
| BF-ARP-25-0005 | 25 | 230 | 2800 | 115 | 3 | 34 | 230 | 2800 | 350 | 3 | 6 | 3,64 m² | 34 |
| BF-ARP-25-0006 | 25 | 280 | 2800 | 184 | 3 | 41 | 280 | 2800 | 375 | 2 | 5 | 3,47 m² | 41 |
| BF-ARP-25-0007 | 25 | 350 | 2800 | 260 | 2 | 51 | 350 | 2800 | 440 | 2 | 4 | 3,22 m² | 51 |
| BF-ARP-25-0008 | 25 | 465 | 2800 | 363 | 2 | 68 | 465 | 2800 | 570 | 1 | 3 | 2,80 m² | 68 |
| BF-ARP-50-0001 | 50 | 232 | 1400 | 112 | 6 | 17 | 232 | 1400 | 352 | 6 | 12 | 4,41 m² | 17 |
| BF-ARP-50-0002 | 50 | 348 | 1400 | 228 | 4 | 26 | 348 | 1400 | 468 | 4 | 8 | 3,98 m² | 26 |
| BF-ARP-50-0003 | 50 | 464 | 1400 | 343 | 3 | 34 | 464 | 1400 | 585 | 3 | 6 | 3,67 m² | 34 |
| BF-ARP-50-0004 | 50 | 560 | 1400 | 437 | 3 | 41 | 560 | 1400 | 680 | 1 | 5 | 3,49 m² | 41 |
| BF-ARP-50-0005 | 50 | 230 | 2800 | 115 | 3 | 34 | 230 | 2800 | 350 | 3 | 6 | 4,06 m² | 34 |
| BF-ARP-50-0006 | 50 | 280 | 2800 | 184 | 3 | 41 | 280 | 2800 | 375 | 2 | 5 | 3,84 m² | 41 |
| BF-ARP-50-0007 | 50 | 350 | 2800 | 260 | 2 | 51 | 350 | 2800 | 440 | 2 | 4 | 3,50 m² | 51 |
| BF-ARP-50-0008 | 50 | 465 | 2800 | 363 | 2 | 68 | 465 | 2800 | 570 | 1 | 3 | 3,02 m² | 68 |
padrão de Printed
*To ensure acoustic performance, the spacing between the baffles must be equal to it´s height “A.”
Note: Changing the distance between the baffles changes the acoustic performance and the coverage area.
Heights designed to make better use of the board, with lower cost and maximum benefit..
This baffle has a system of complementary parts (1 and 2) for assembling the module.
Prints: Chose your own color, print/picture in high resolution, minimum 300 DPI+ required for
better quality. See QR CODE for avaiable prints.
Upcycling: All our products are 100% recyclable.
