Baffle acústico suspenso — baffle classic wave.

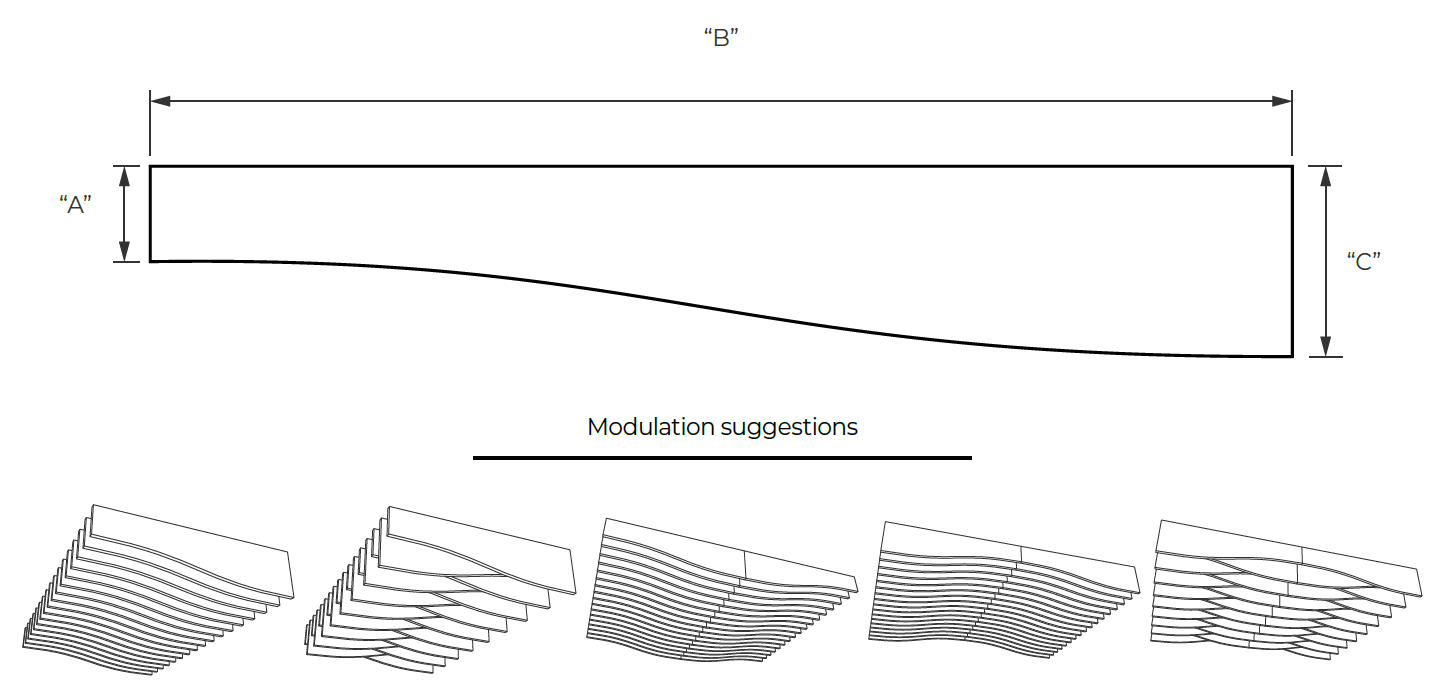

| Code | Thickness(mm) | "A"(mm) | "B"(mm) | "C"(mm) | Peças/cx | Cobertura | PET Bottles |
|---|---|---|---|---|---|---|---|
| BC-WAR-50-0001 | 50 | 110 | 1200 | 210 | 17 | 5,05 m² | 15 |
| BC-WAR-50-0002 | 50 | 200 | 1200 | 300 | 11 | 4,26 m² | 27 |
| BC-WAR-50-0003 | 50 | 300 | 1200 | 400 | 8 | 3,84 m² | 41 |
| BC-WAR-50-0004 | 50 | 500 | 1200 | 600 | 5 | 3,18 m² | 67 |
cor para visualizar
padrão de High Relief
*To ensure acoustic performance, the spacing between the baffles must be equal to it´s height “C.”
Note: Changing the distance between the baffles changes the acoustic performance and the coverage area.
Solid Colors: Chose from avaiable colors or select your pantone color.
See QR CODE for avaiable colors.
High Relief: High Relief format could be personalized. Mould costs should be approved.
See High Relief avaiable possibilities in QR CODE.
Upcycling: All our products are 100% recyclable.
