BAFFLE CLASSIC TRAPEZIUM WAVE - SOLID - HIGH RELIEF
SOLID - HIGH RELIEF
Baffle acústico suspenso — baffle classic trapezium wave.

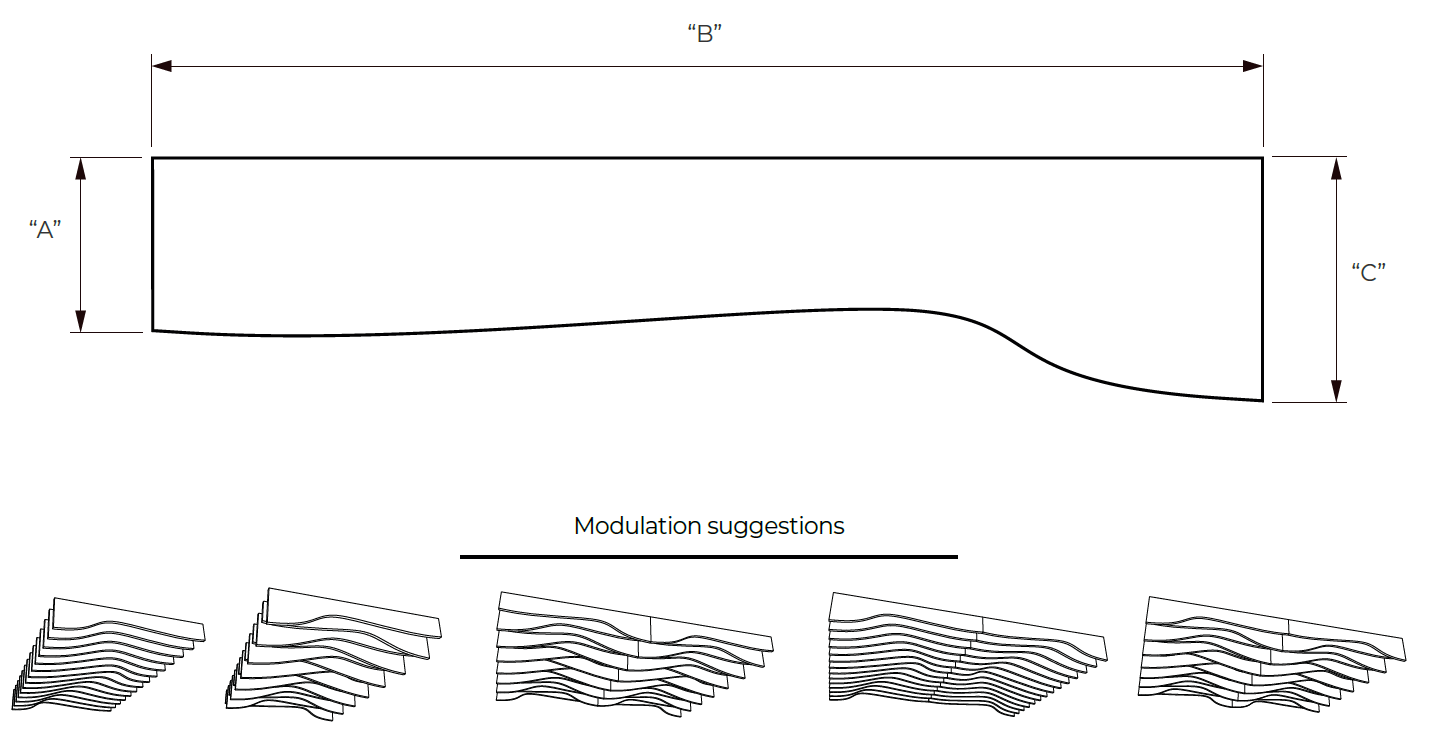

| Code | Thickness(mm) | "A"(mm) | "B"(mm) | "C"(mm) | Peças/cx | Cobertura | PET Bottles |
|---|---|---|---|---|---|---|---|
| BC-THR-50-0001 | 50 | 142 | 1200 | 230 | 14 | 4,51 m² | 16 |
| BC-THR-50-0002 | 50 | 217 | 1200 | 320 | 10 | 4,06 m² | 29 |
| BC-THR-50-0003 | 50 | 297 | 1200 | 390 | 8 | 3,76 m² | 44 |
| BC-THR-50-0004 | 50 | 497 | 1200 | 590 | 5 | 3,13 m² | 73 |
cor para visualizar
padrão de High Relief
*To ensure acoustic performance, the spacing between the baffles must be in equal to it´s height “C.”
Note: Changing the distance between the baffles changes the acoustic performance and the coverage area.
Solid Colors: Chose from avaiable colors or select your pantone color.
See QR CODE for avaiable colors.
High Relief: High Relief format could be personalized. Mould costs should be approved.
See High Relief avaiable possibilities in QR CODE.
Upcycling: All our products are 100% recyclable.
